Actar-35 Retrofit
Actar-35 Retrofit

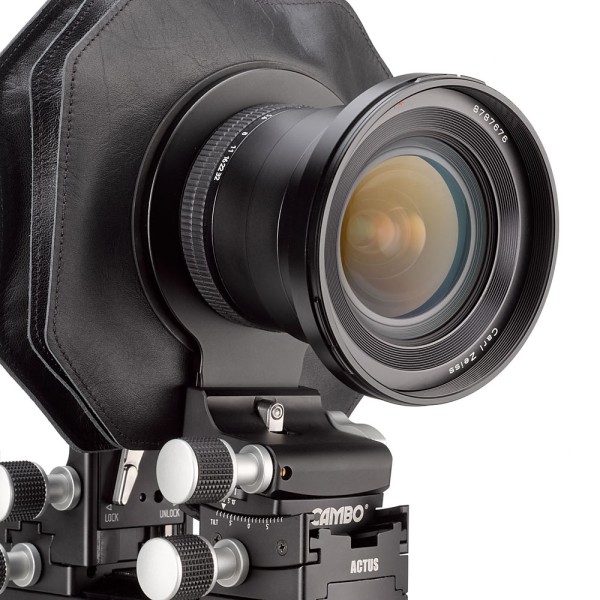

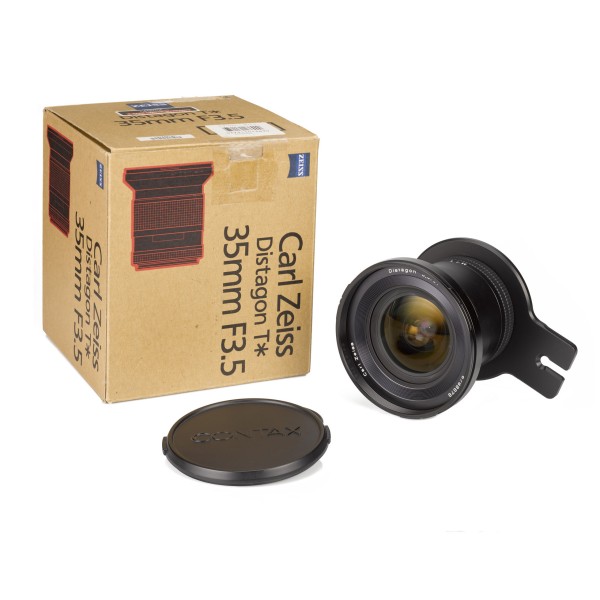

The ACTAR-35 is a rebuild of the Carl Zeiss Distagon 3.5/35 from the Contax 645 system. It's for use on Cambo Actus view cameras combined with DSLR or Mirrorless cameras.
Since the lens' image circle covers the 4,5x6 format it enables a horizontal shift of 10mm to each side when using a full frame (24x36) sensor and 6mm when using a 33x44 sensor.
The aperture ranges f/3,5 to f/32. The aperture is manual and there are no electronical connections available nor needed.
Note: This is a retrofit. Cambo rebuilds existing Distagon-35 lenses provided by the customer.
Retrofit Process
The original lens will be modified as follows:
- The focussing movement is removed, focussing is done with the Actus camera's rear standard
- The electronic aperture is replaced with a manual aperture
- The lens is fixed to a Cambo Actus lens plate
- The optical design is not changed
- The lens is rebuild in the quality as-is, in other words: no improvements are possible on the optical performance. The customer is responsible for checking the lens quality before submitting.
Technical Details
| Focal Length | 35mm |
| Aperture range | f 3,5 - 32 (manual) |
| Lens construction | 16 elements/ 11 groups |
| Coating | Multi coating |
| Front filter thread | m95 |
| Size LxWxH | 116x100x133mm (including Actus Mount) |
| Weight | 815gram |
| Image circle | 70mm (approximately) |
| Build for | Cambo Actus (non DB) |
| Work in combination with actus (or actus MV) for | Mirrorless Camera body |
| Available since | December 20176 |
