Actar-80

Actar-80

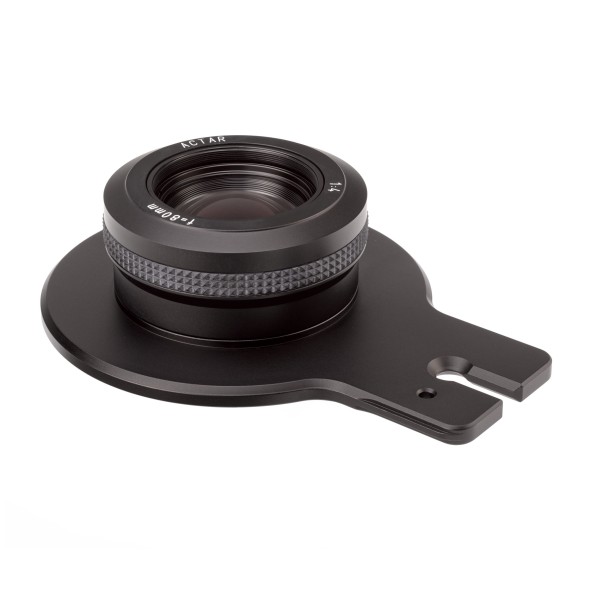

The ACTAR-80 is a lens dedicated to the Cambo Actus in combination with any DSLR or mirrorless camera, mounted to the Actus. This lens is permanently attached to an Actus lens panel and has a focal length of 80 mm. This makes it an ideal companion for studio, landscape and architectural photographers. With a light weight and a small size it is easy to carry with you to location shootings.

Cambo’s ACTAR-80 is a standard lenses, dedicated to the Cambo Actus series. It will focus at infinity in combination with mirrorless camera bodies as well as DSLR bodies.

Both ACTAR-80/90 lenses are ideal for product photography, including fashion, food and jewellery. An extensive image circle of 85 mm, allows for horizontal shifts over more than 20mm each side when using a full frame (24x36) sensor in either landscape or portrait mode.

The optical design of this lens is a 7 element, of which all lenses are multicoated to achieve the best contrast.

Please note that the aperture is manual and there are no electronical connections available nor needed.


Focal Length80mm
Aperture range f 4,0 - 22 (manual)
Lens construction7 elements
CoatingMulti coating
Front filter threadm40.5
Size LxWxH47x98x130mm (including actus mount)
Weight355 gram
Image circle85mm
Build for Cambo Actus (non DB)
Work in combination with actus (or actus MV) forMirrorless Camera body
Available since January 2017
