WRA-2023
WRA-2023

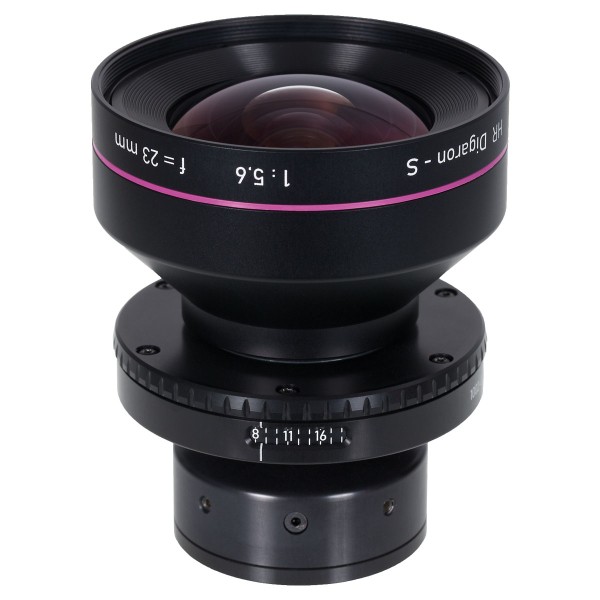

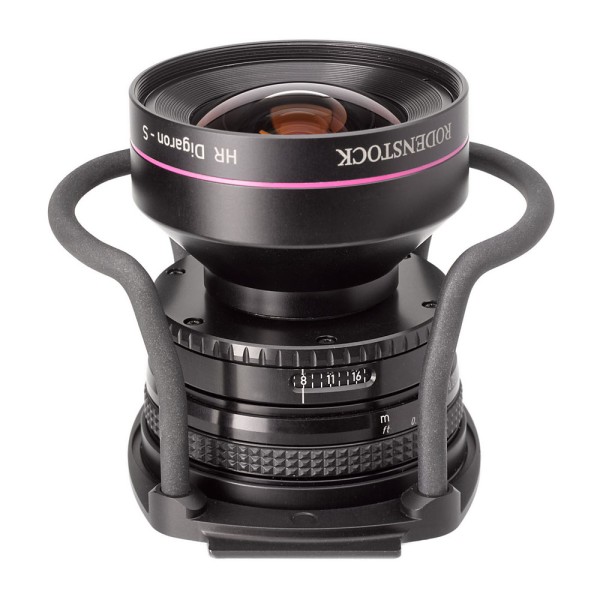

The WRA-2023 Lenspanel is dedicated to the use with Digital Backs with sensor activated electronic shutter and has a Rodenstock 5,6/23 HR Digaron-S lens with Aperture Only mounted in a helical focussing mount.
Features
Product details
| Shortest focus distance to object | 0,2 mtr |
|---|---|
| Image circle of lens at f/11 | 70mm |
Optical Movements
| CCD size 37x37mm | 11/11 mm |
|---|---|
| CCD size 33x44mm | 11/ 9 mm |
| CCD size 36x48mm | 8/ 6 mm |
| CCD size 37x49mm | 7/ 5 mm |
| CCD size 40x54mm | 2/1 mm |
| CCD size 56x36mm | 3/ 2 mm |
Camera Movements
| Camera | Up / Down / Left / Right |
|---|---|
| WDS | 34 / 26 / 20 / 20mm |
| WRS | 25 / 15 / 20 / 20mm |
| 1600 | 20 / 20 / 20 / 20mm |
This product is compatible with the PhaseOne XT system / No data transfer
