WRX-32
WRX-32
The WRX-32 Lenspanel is dedicated to the use with IQ4 Digital Backs and has a Rodenstock 4,0/32 HR Digaron-W lens with Phase One X-Shutter mounted in a helical focussing mount.
Product details
| Image circle of lens at f/8 | 90mm |
|---|---|
| Shortest focus distance to object | 0.3 mtr. |
Optical Movements
| CCD size | Movements |
|---|---|
| 37x37mm | 23/23mm |
| 33x44mm | 23/20mm |
| 36x48mm | 20/17mm |
| 37x49mm | 19/17mm |
| 40x54mm | 16/13mm |
| 36x56mm | 17/13mm |
Camera Movements
| Camera | Movements Up/ Down/ Left/ Right |
|---|---|
| WDS | 34 / 26 / 20 / 20mm |
| WRS 5000 | 25 / 15 / 20 / 20mm |

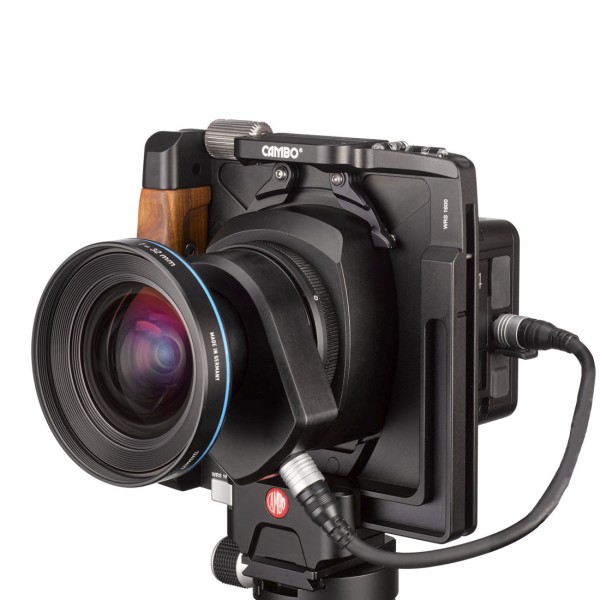

| WRS 1600 | 20 / 20 / 20 / 20mm |
This 32HR Digaron-W is also available on a Tilt/Swing Lenspanel version, see WTSX-32
