WRC-490/491

WRC-490/491

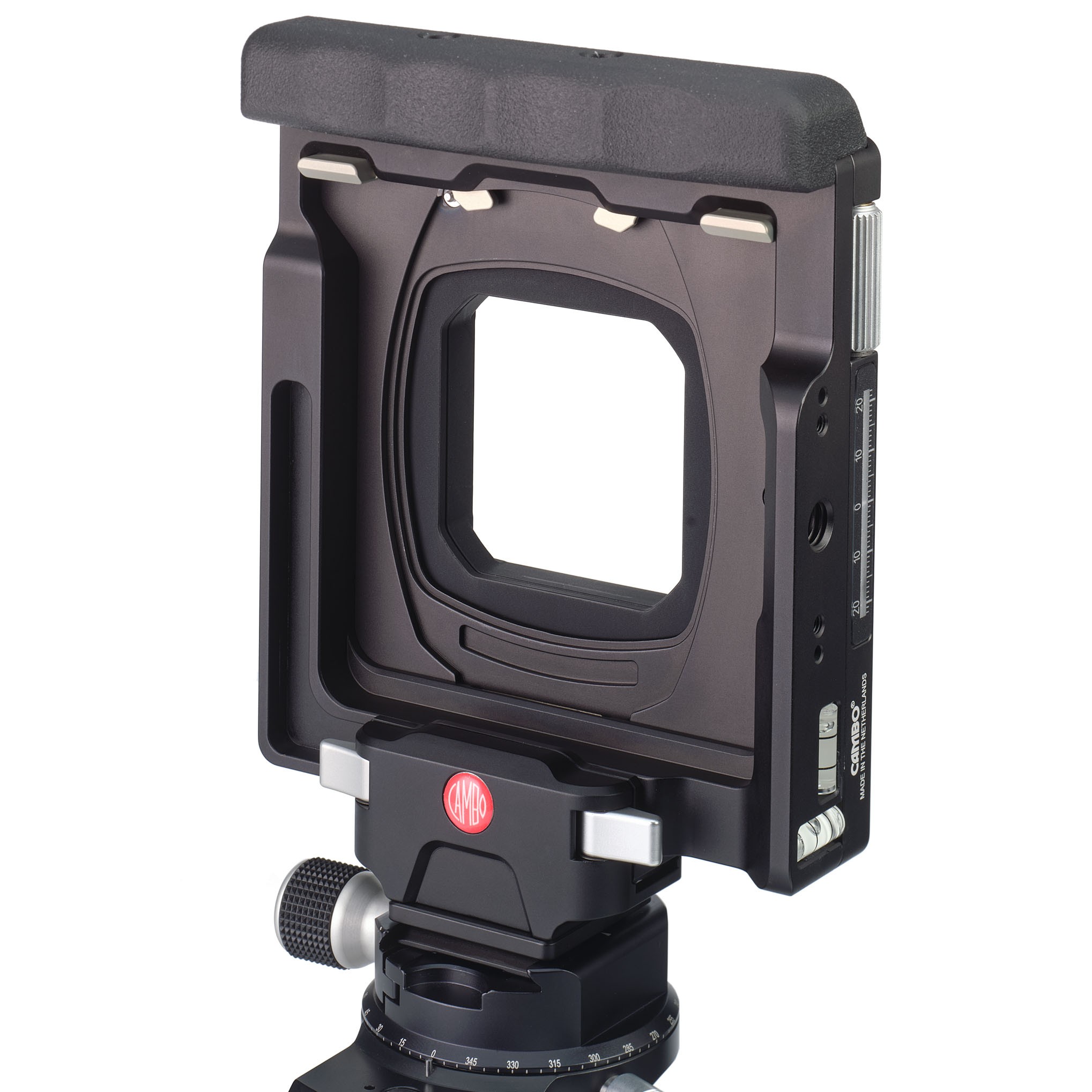

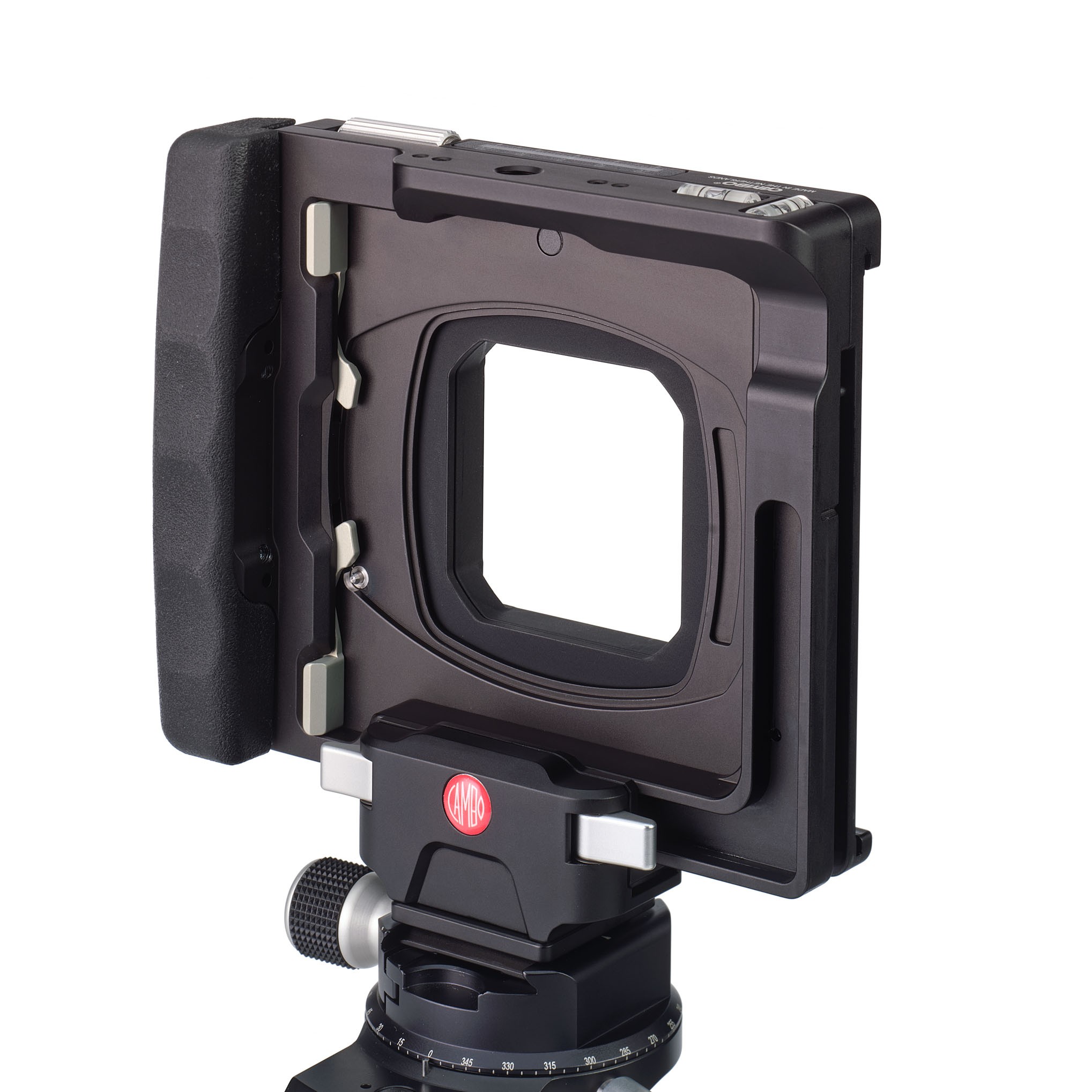

The Cambo WRC-490 and WRC-491 are the technical cameras of choice for those who value a compact form factor combined with optimum usability. This camera offers 20/20mm of Shift or Rise/Fall. Depending on the orientation of the body, which is changed by a 90° flip around the tripod mount. To make these movements available in portrait and landscape orientation, we’ve integrated a rotatable interface plate for the digital back as well.

The WRC-490/491 share the lens mount with the other Cambo WDS/WRS and Phase One XT tech cams. Newly designed rear spacers enable the use of short barrel lens panels. Many lens panels can be fitted with an optional Tilt/Swing mechanism.

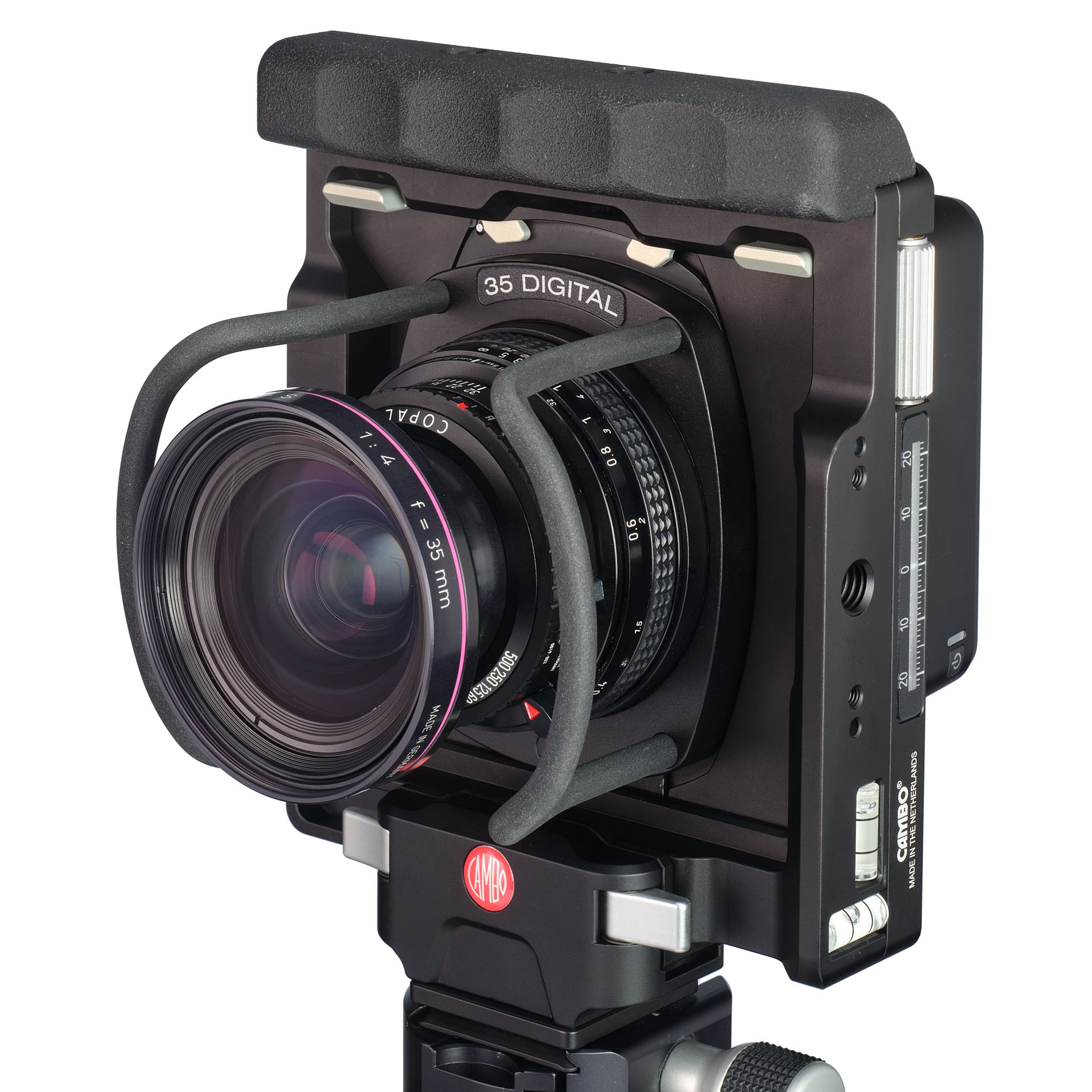

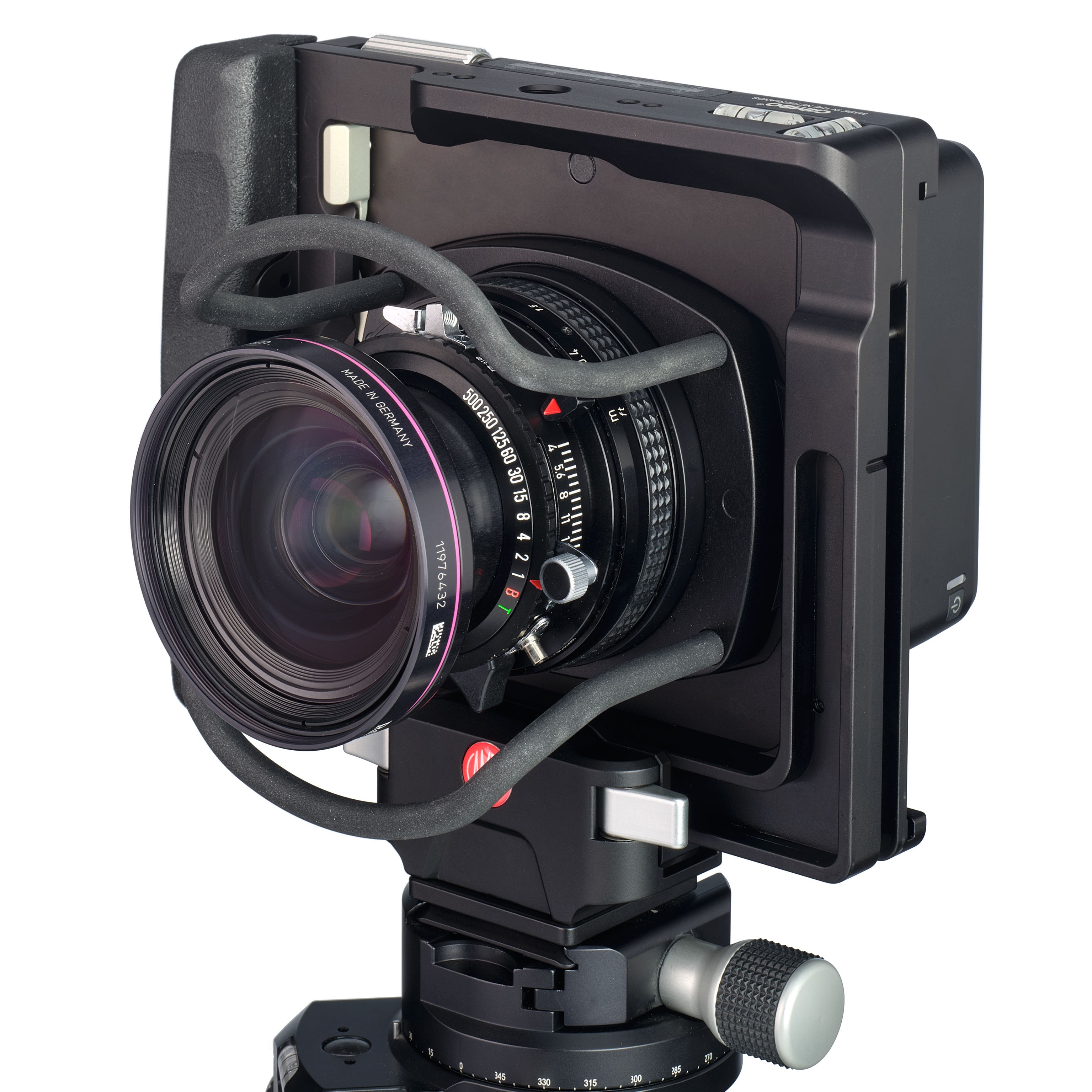

New Rodenstock Digaron lenses are available in Aperture Mount or X-Shutter. Cambo offers a retroffiting service for many legacy Schneider and Rodenstock lenses. This gives access to an extensive range of focal lengths, reaching from 19 to 180mm and beyond on request.

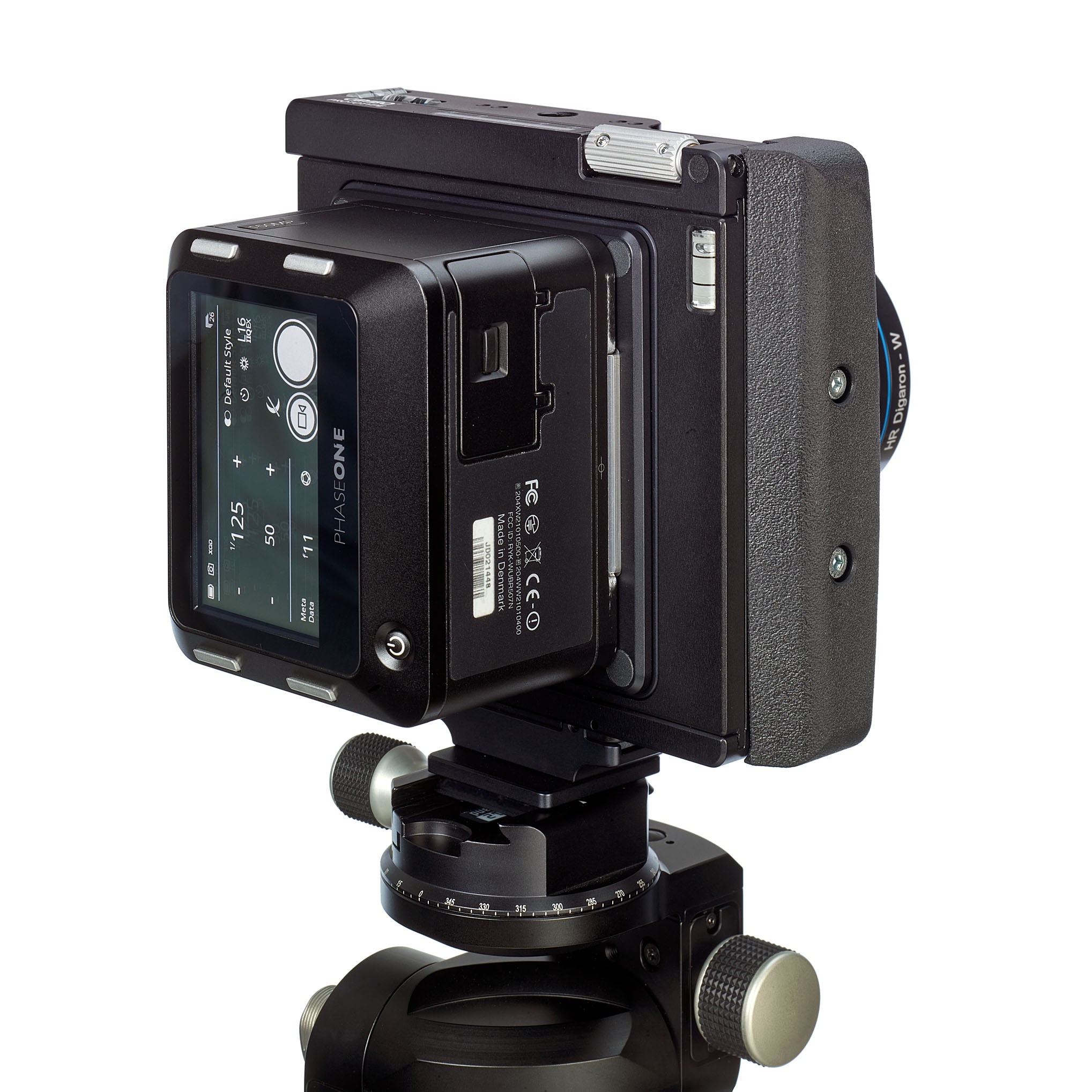

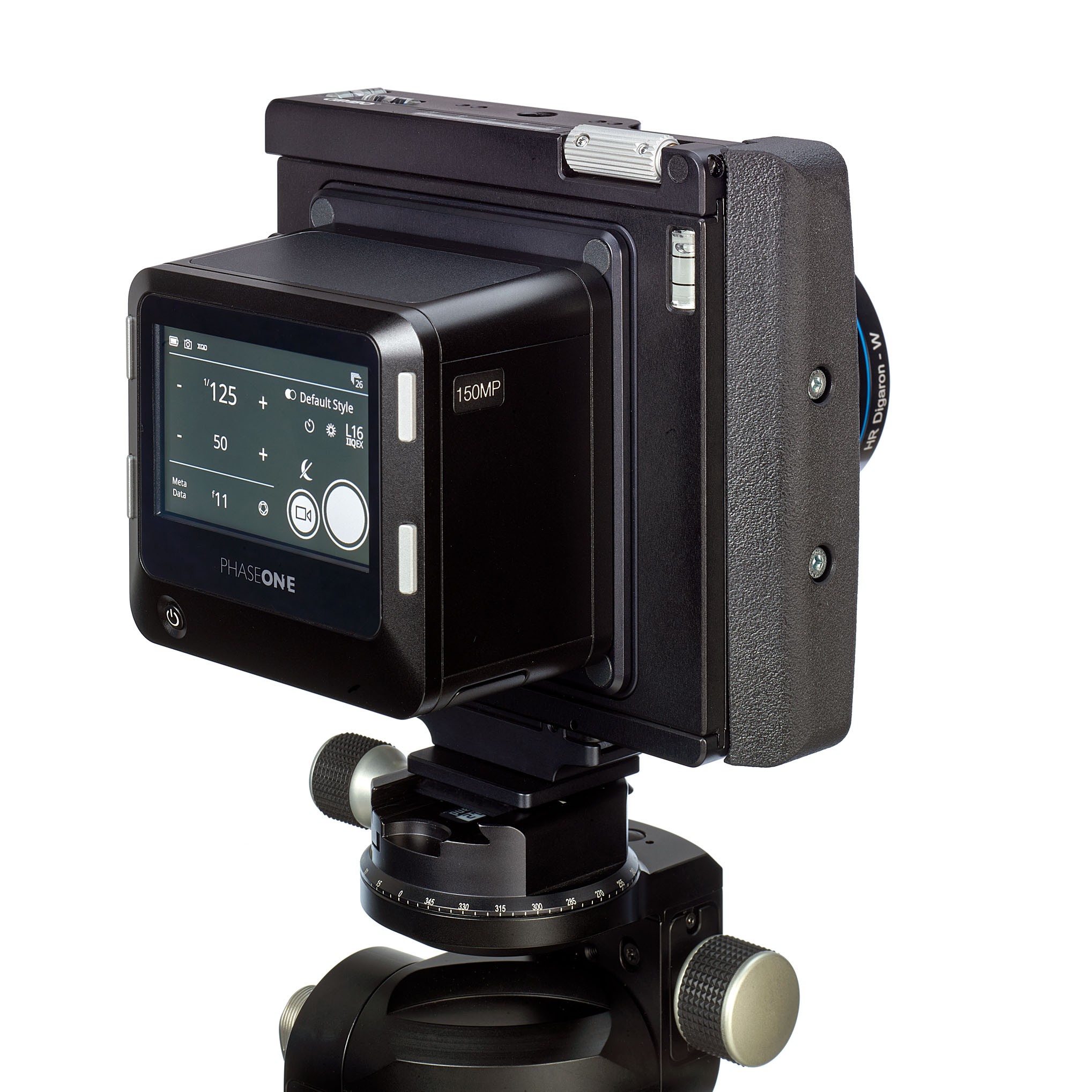

  • Cambo WRC-490 comes with an integrated Phase One/Mamiya interface

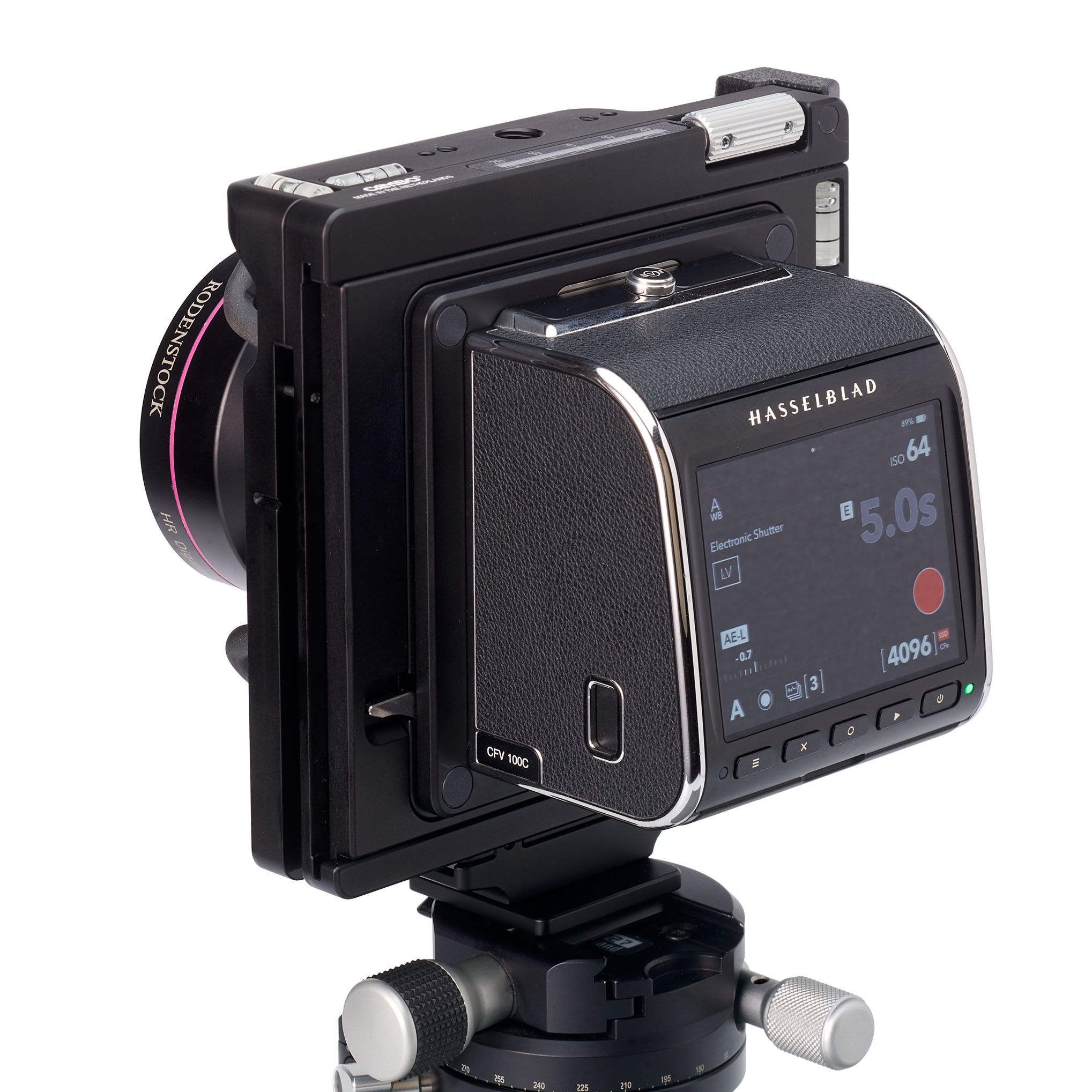

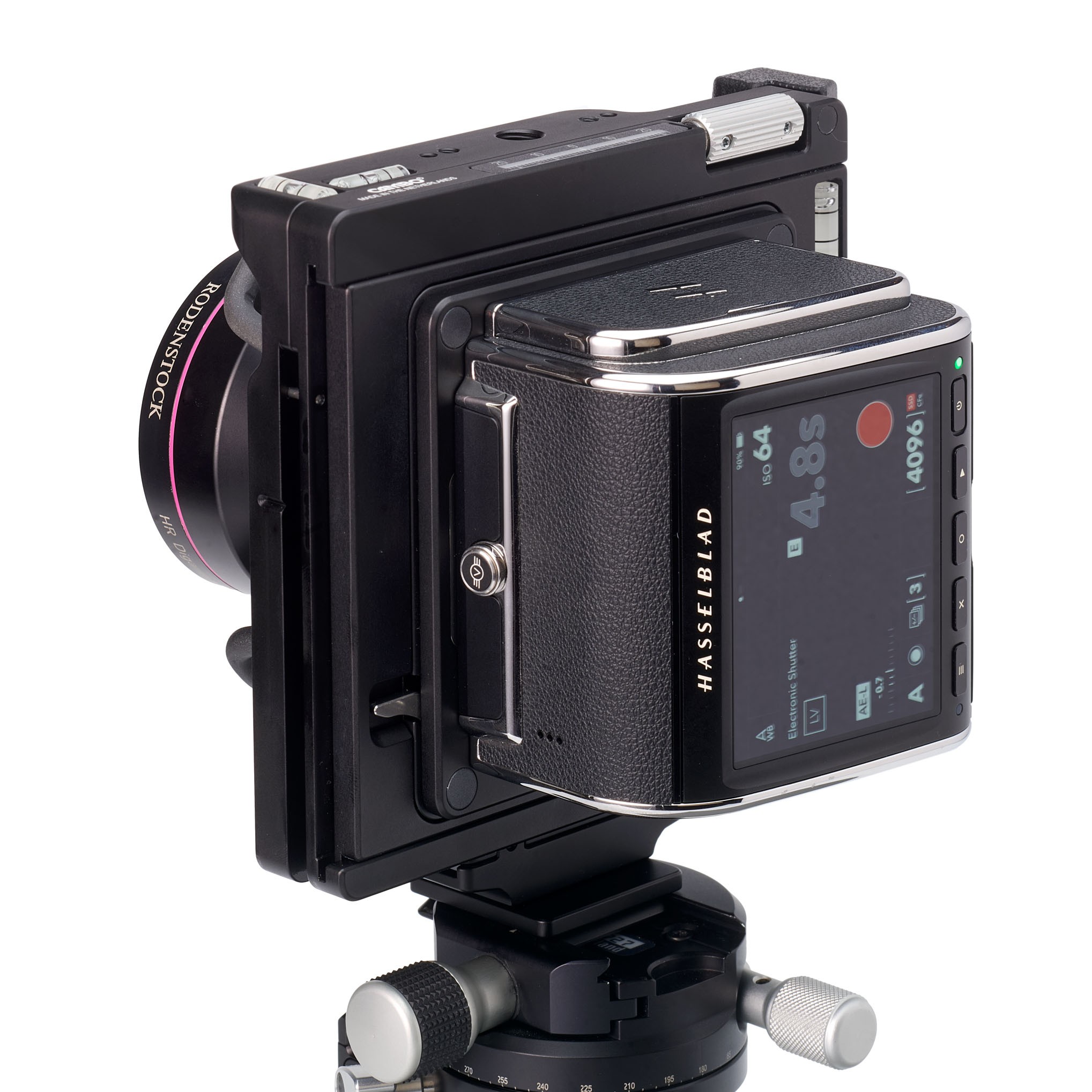

  • Cambo WRC-491 comes with an integrated Hasselblad CFV interface
Product details

Features
  • Compatible with Cambo’s WRS system
  • Integrated Portrait/Landscape rotation of the back
  • Integrated Portrait/Landscapte rotation of the camera body
  • Lightweight - only 0.97 kg (excl. lens)
  • Milimeter scales for movements
  • Integrated Arca compatible tripod mount
  • 1/4 - 3/8" mount
  • 2 Integrated spirit levels
  • 2-point fixation accessory mount
Exterior
  • High grade aluminium body in black anodised finish
  • Single handgrip
  • Stainless steel drive knob for shifts or rise / fall
    Accessories and options

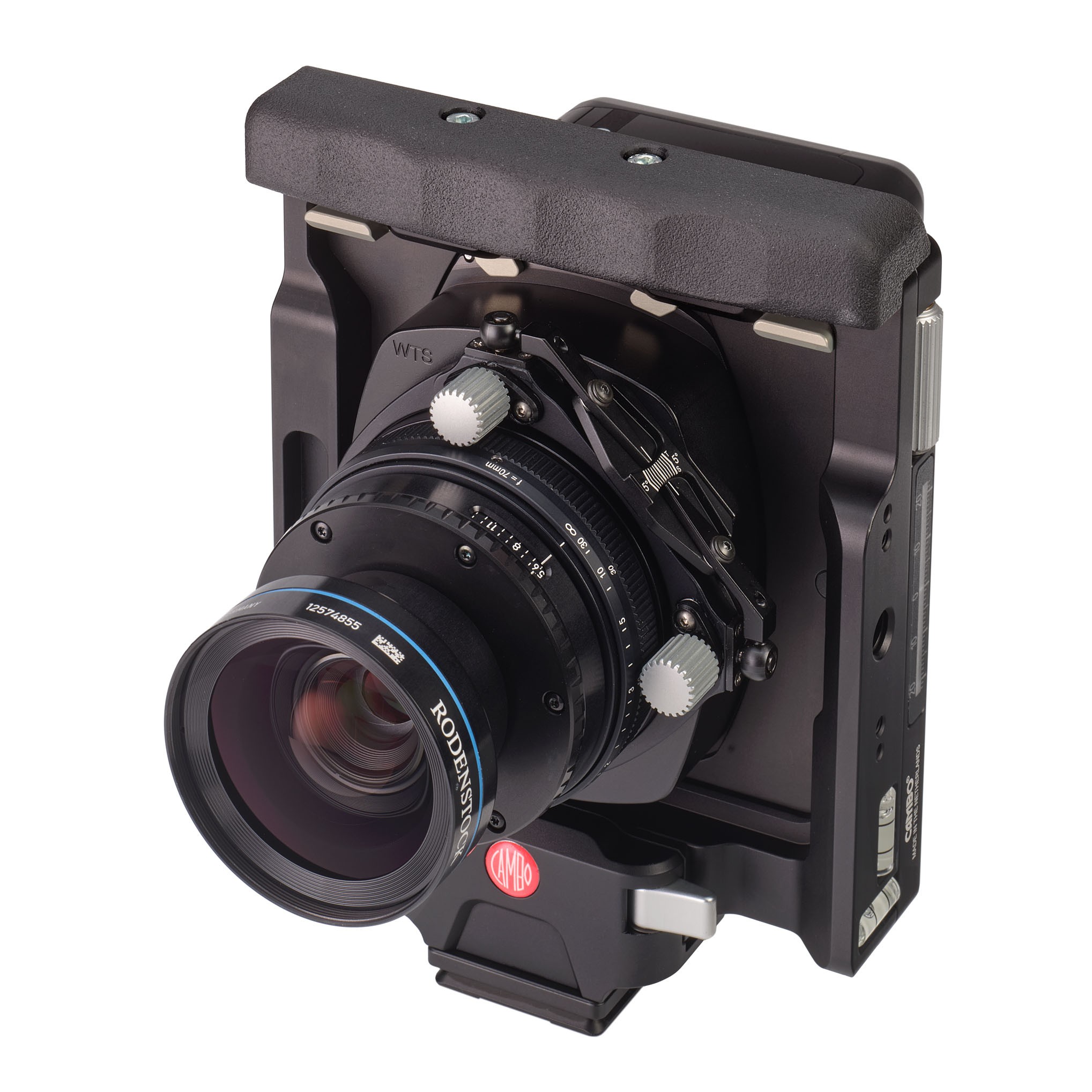

    • Optional WTS Tilt-Swing Lenspanels
    • Broad range of optics, including Phase One X-Shutter lenses
    • Retrofitting of legacy lenses offered
    Interfaces and Lenspanels
    Interfaces

    The Cambo WRC-490/491 come with either an integrated Phase One/Mamiay or Hasselblad CFV interface.For the adaptation of legacy digital backs we'd like to refer to or other WRC and WRS models.

    Lenspanels

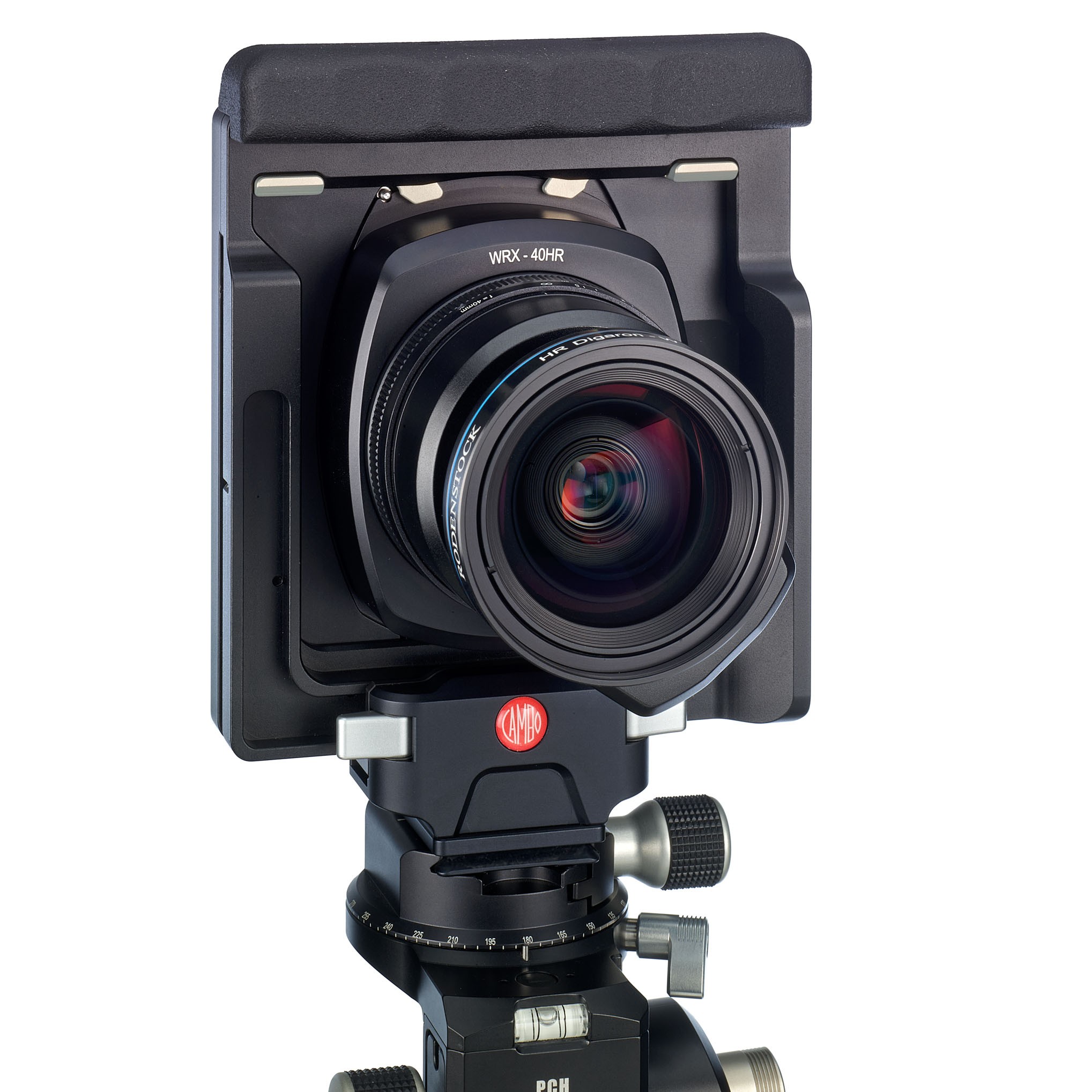

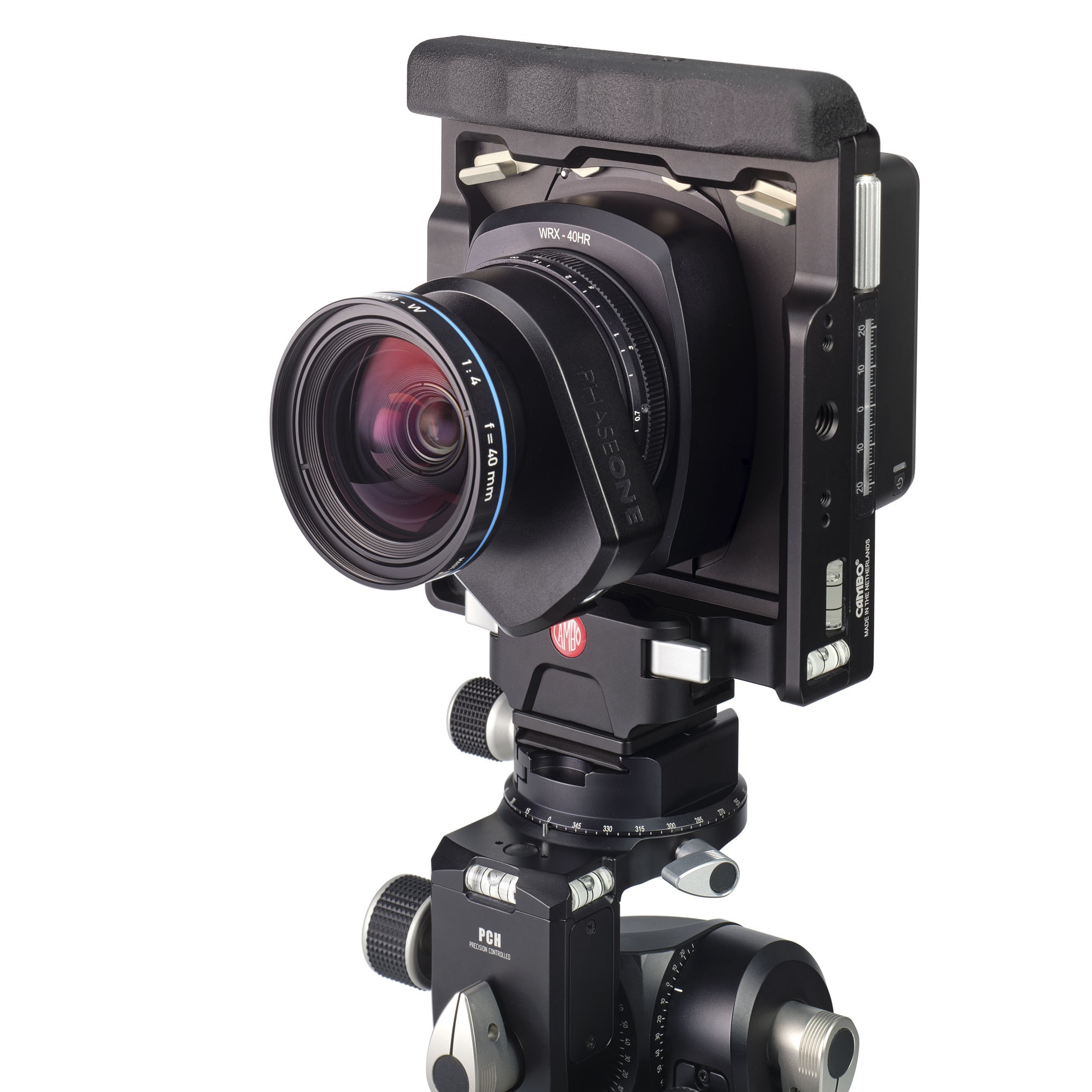

    In order to accomplish nearly any architectural or landscape assignment, we offer a broad range of Rodenstock HR Digaron lenses. Choose from focal lengths ranging from 23mm up to 180mm. Legacy lenses - like Schneider Kreuznach - can be retrofitted on request.

    Go to Lenspanels

    Technical details
    Size156 x 134mm (WxH) incl. handgrips,tripod mount and interface
    Weight0.97 Kg  (Excl. lens)
    Shift - Rise/Fall40 mm (-20mm/+ 20mm)
